EdgeTaggedGraph
EdgeTaggedGraph
EdgeTaggedGraph[{e1,e2,…}]
辺 ejに一意的なタグが付いたグラフを与える．
EdgeTaggedGraph[{e1,e2,…}{t1,t2,…}]
辺 ejにタグ tjが付いたグラフを返す．
EdgeTaggedGraph[{v1,v2,…},{e1,e2,…}{t1,t2,…}]
頂点 viと辺 ejにタグ tjが付いたグラフを返す．
EdgeTaggedGraph[{…,wi[vi],…},{…,wj[ej],…}{t1,t2,…}]
頂点と辺に記号的なラッパー wkで定義された注釈が付いたグラフを返す．
詳細とオプション
- EdgeTaggedGraphはGraphオブジェクトを生成する．
- EdgeTaggedGraphは，自動生成された辺のタグと識別可能な平行辺を持つグラフの構築に主に使われる．
- EdgeTaggedGraph[{e1,e2,…}]は，すべての辺にタグが付き，平行辺に一意的なタグが付いたグラフを返す．平行辺 ejの新たなタグは1から始まる整数である．辺 ejの重複しない既存のタグはそのまま残される．
- EdgeTaggedGraphは，Graphと同じ頂点，辺，ラッパー，オプションをサポートする．
全オプションのリスト
例題
すべて開く すべて閉じる例 (2)
スコープ (27)
連結性 (8)
で記号を入力する：EdgeTaggedGraph[{12, 23, 31}]
で記号を入力する：EdgeTaggedGraph[{12, 23, 31}]EdgeTaggedGraph[{1 -> 2, 2 -> 3, 3 -> 1}]EdgeTaggedGraph[{1 -> 2, 2 -> 3, 3 -> 1}, DirectedEdges -> False]頂点の明示的なリストを与えることで，孤立点があるグラフを指定する：
EdgeTaggedGraph[{1, 2, 3, 4}, {12, 23, 31}]VertexListおよびEdgeListを使って頂点と辺を得る：
{g1, g2} = {EdgeTaggedGraph[{12, 23, 31}], EdgeTaggedGraph[{23, 12, 31}]}EdgeList /@ {g1, g2}VertexList /@ {g1, g2}明示的な頂点リストを使ってVertexListで使われる順序を制御する：
{g1, g2} = {EdgeTaggedGraph[{1, 2, 3}, {23, 12, 31}], EdgeTaggedGraph[{3, 2, 1}, {23, 12, 31}]}VertexList /@ {g1, g2}{EdgeTaggedGraph[{12, 22}], EdgeTaggedGraph[{12, 22}]}{EdgeTaggedGraph[{ab, bc, ca}], EdgeTaggedGraph[{"foo""bar", "bar""gnu", "gnu""foo"}],
EdgeTaggedGraph[{[image][image], [image][image], [image][image]}]}VertexList /@ %ラッパー (5)
{EdgeTaggedGraph[{Style[1, Red], 2, 3}, {12, 23, 31}], EdgeTaggedGraph[{1, 2, 3}, {Style[12, Red], 23, 31}]}{EdgeTaggedGraph[{1, 2, Labeled[Style[3, Red], "hello"]}, {12, 23, 31}], EdgeTaggedGraph[{1, 2, 3}, {Style[Labeled[12, "hello"], Red], 23, 31}]}Tooltipのような，ラッパーによるインタラクティブな動作：
EdgeTaggedGraph[{12, 23, Tooltip[Style[31, Red], "hello"]}]EdgeTaggedGraph[{12, 23, Tooltip[Style[31, Red], Plot[Sin[x], {x, 0, 2Pi}]]}]Buttonを使って辺または頂点がクリックされたときのアクションをトリガする：
{EdgeTaggedGraph[{12, 23, Button[Style[31, Red], Speak["Edge from 3 to 1"]]}], Graph[{1, 2, Button[Style[3, Red], Speak["Vertex 3"]]}, {12, 23, 31}, VertexSize -> Medium]}PopupWindowを使ってドリルダウン情報を提供する：
EdgeTaggedGraph[{12, 23, PopupWindow[Style[31, Red], DateListPlot[FinancialData["IBM", "Jan. 1, 2004"]]]}]スタイル付け (8)
{EdgeTaggedGraph[{12, 23, 31}, VertexStyle -> Green], EdgeTaggedGraph[{12, 23, 31}, EdgeStyle -> Green]}{EdgeTaggedGraph[{12, 23, 31}, VertexStyle -> {1 -> Green, Orange}], EdgeTaggedGraph[{12, 23, 31}, EdgeStyle -> {12 -> Green, Orange}]}{EdgeTaggedGraph[{Style[1, Green], 2, 3}, {12, 23, 31}, VertexStyle -> Orange], EdgeTaggedGraph[{Style[12, Green], 23, 31}, EdgeStyle -> Orange]}Table[EdgeTaggedGraph[{12, 23, 31}, VertexSize -> s, PlotLabel -> s], {s, {Tiny, Small, Medium, Large}}]Table[EdgeTaggedGraph[{12, 23, 31}, VertexSize -> s, PlotLabel -> s], {s, {0.1, 0.2, 0.5, 1}}]VertexShapeFunctionの組込みコレクションを使う：
Table[EdgeTaggedGraph[{12, 23, 31}, VertexShapeFunction -> s, VertexSize -> 0.2, PlotLabel -> s], {s, {"Triangle", "Square", "Rectangle", "Pentagon", "Hexagon", "Octagon"}}]Table[EdgeTaggedGraph[{12, 23, 31}, VertexShapeFunction -> s, VertexSize -> 0.2, PlotLabel -> Style[s, 9]], {s, ResourceData["VertexShapeFunction", "Rounded"]}]Table[EdgeTaggedGraph[{12, 23, 31}, VertexShapeFunction -> s, VertexSize -> 0.2, PlotLabel -> s], {s, ResourceData["VertexShapeFunction", "Concave"]}]EdgeTaggedGraph[{12, 23, 31}, VertexShapeFunction -> { 1 -> "Square"}, VertexSize -> 0.2]EdgeTaggedGraph[{12, 23, 31}, VertexShapeFunction -> { 1 -> "Square", "Triangle"}, VertexSize -> 0.2]任意のGraphics，ImageあるいはGraphics3Dを頂点の形として使う：
Table[EdgeTaggedGraph[{12, 23, 31}, VertexShape -> s, VertexSize -> Medium], {s, {[image], [image], [image]}}]組込みのEdgeShapeFunctionのコレクションを使う：
Table[EdgeTaggedGraph[{12, 23, 31}, EdgeShapeFunction -> {{ef, "ArrowSize" -> 0.1}}, PlotLabel -> ef], {ef, {"BoxLine", "DiamondLine", "DotLine"}}]Table[EdgeTaggedGraph[{12, 23, 31}, EdgeShapeFunction -> {{ef, "ArrowSize" -> 0.1}}, PlotLabel -> Style[ef, 9]], {ef, ResourceData["EdgeShapeFunction", "FilledArrow"]}]Table[EdgeTaggedGraph[{12, 23, 31}, EdgeShapeFunction -> {{ef, "ArrowSize" -> 0.1}}, PlotLabel -> Style[ef, 9]], {ef, ResourceData["EdgeShapeFunction", "UnfilledArrow"]}]Table[EdgeTaggedGraph[{12, 23, 31}, EdgeShapeFunction -> {{ef, "ArrowSize" -> 0.1}}, PlotLabel -> Style[ef, 9]], {ef, ResourceData["EdgeShapeFunction", "CarvedArrow"]}]EdgeTaggedGraph[{12, 23, 31}, EdgeShapeFunction -> {12 -> "FilledArrow"}]EdgeTaggedGraph[{12, 23, 31}, EdgeShapeFunction -> {12 -> "FilledArrow", "CarvedArrow"}]ラベル付け (6)
{EdgeTaggedGraph[{12, 23, Labeled[31, "hello"]}], EdgeTaggedGraph[{1, 2, Labeled[3, "hello"]}, {12, 23, 31}]}Table[EdgeTaggedGraph[{1, 2, Labeled[3, l]}, {12, 23, 31}, ImagePadding -> 25], {l, {Sin[x], [image], [image]}}]Table[EdgeTaggedGraph[{12, 23, Labeled[31, l]}], {l, {Sin[x], [image], [image]}}]Placedを使って，記号的な内側の位置を含む頂点ラベルの置き方を制御する：
Table[EdgeTaggedGraph[{1, 2, Labeled[3, Placed["■■", p]]}, {12, 23, 31}, PlotLabel -> p, VertexSize -> Large, VertexShapeFunction -> "Square"], {p, {Left, Right, Bottom, Top}}]Table[EdgeTaggedGraph[{1, 2, Labeled[3, Placed["■■", p]]}, {12, 23, 31}, PlotLabel -> p, VertexShapeFunction -> "Square", VertexSize -> Small], {p, {Before, After, Below, Above}}]Table[EdgeTaggedGraph[{1, 2, Labeled[3, Placed["■", p]]}, {12, 23, 31}, VertexSize -> 0.25, VertexShapeFunction -> "Square", PlotLabel -> p, BaselinePosition -> Axis], {p, {{0, 0}, {1 / 2, 1 / 2}, {1, 1}}}]Placedをラッパーとして使って複数のラベルを置く：
EdgeTaggedGraph[{1, 2, Labeled[3, Placed[{"lbl1", "lbl2"}, {Above, Below}]]}, {12, 23, 31}]EdgeTaggedGraph[{1, 2, Labeled[3, Placed[{"lbl1", "lbl2", "lbl3", "lbl4"}, {Above, After, Below, Before}]]}, {12, 23, 31}]VertexLabelsを使って複数のラベルを置く：
EdgeTaggedGraph[{12, 23, 31}, VertexLabels -> {3 -> Placed[{"lbl1", "lbl2"}, {Above, Below}]}]Placedを記号位置と一緒に使って辺に沿ったラベルの置き方を制御する：
Table[EdgeTaggedGraph[{Labeled[12, Placed["■■", p]], 23, 31}, PlotLabel -> p, VertexSize -> Small], {p, {"Start", "Middle", "End"}}]Table[EdgeTaggedGraph[{Labeled[12, Placed["■■", p]], 23, 31}, PlotLabel -> p, VertexSize -> Small, BaselinePosition -> Axis], {p, {0, 1 / 4, 1 / 3}}]Placedをラッパーに使って複数のラベルを置く：
EdgeTaggedGraph[{12, 23, Labeled[31, Placed[{"lbl1", "lbl2"}, {"Start", "End"}]]}]EdgeTaggedGraph[{12, 23, Labeled[31, Placed[{"lbl1", "lbl2", "lbl3"}, {"Start", "Middle", "End"}]]}]EdgeLabelsを使って複数のラベルを置く：
EdgeTaggedGraph[{12, 23, 31}, EdgeLabels -> {31 -> Placed[{"lbl1", "lbl2"}, {"Start", "End"}]}]オプション (86)
AnnotationRules (3)
EdgeTaggedGraph[{1, 2, 3}, {12, 23, 31}, AnnotationRules -> {1 -> {VertexLabels -> "hello"}}]EdgeTaggedGraph[{12, 23, 31}, AnnotationRules -> {12 -> {EdgeLabels -> "hello"}}]EdgeTaggedGraph[{1, 2, 3}, {12, 23, 31}, AnnotationRules -> {"GraphProperties" -> {"Message" -> "hello"}}]AnnotationValue[%, "Message"]DirectedEdges (2)
デフォルトで，規則のリストを与えた場合は有向グラフが生成される：
EdgeTaggedGraph[{1 -> 2, 2 -> 3, 3 -> 1}]DirectedEdges->Falseを使って，規則を無向辺として解釈する：
EdgeTaggedGraph[{1 -> 2, 2 -> 3, 3 -> 1}, DirectedEdges -> False]DirectedEdgeあるいはUndirectedEdgeを使ってグラフが有向グラフかどうかを直接指定する：
{EdgeTaggedGraph[{12, 23, 31}], EdgeTaggedGraph[{12, 23, 31}]}EdgeLabels (7)
EdgeTaggedGraph[{12, 23, 31}, EdgeLabels -> {12 -> "Hello"}]el = {12, 23, 31};EdgeTaggedGraph[el, EdgeLabels -> Table[el[[i]] -> Subscript[e, i], {i, Length[el]}]]EdgeTaggedGraph[{12, 23, 31}, EdgeLabels -> {12 -> [image], 23 -> [image], 31 -> [image]}]Placedを記号位置と一緒に使って辺に沿ったラベルの置き方を制御する：
Table[EdgeTaggedGraph[{12, 23, 31}, EdgeLabels -> {12 -> Placed["■■■", p]}, PlotLabel -> p], {p, {"Start", "Middle", "End"}}]Table[EdgeTaggedGraph[{12, 23, 31}, EdgeLabels -> {12 -> Placed["■■■", p]}, PlotLabel -> p, BaselinePosition -> Axis], {p, {0, 1 / 3, 1 / 4}}]Table[EdgeTaggedGraph[{12, 23, 31}, EdgeLabels -> {31 -> Placed["■■■", {1 / 2, p}]}, PlotLabel -> p, BaselinePosition -> Axis], {p, {{0, 0}, {1 / 2, 1 / 2}, {1, 1}}}]Placedをラッパーに使って複数のラベルを置く：
EdgeTaggedGraph[{12, 23, Labeled[31, Placed[{"lbl1", "lbl2"}, {"Start", "End"}]]}]EdgeTaggedGraph[{12, 23, Labeled[31, Placed[{"lbl1", "lbl2", "lbl3"}, {"Start", "Middle", "End"}]]}]EdgeLabelsを使って複数のラベルを置く：
EdgeTaggedGraph[{12, 23, 31}, EdgeLabels -> {31 -> Placed[{"lbl1", "lbl2"}, {"Start", "End"}]}]TooltipおよびStatusAreaからの値によって，自動的にラベルを付ける：
EdgeTaggedGraph[{12, 23, 31}, EdgeLabels -> Placed["Name", Tooltip]]EdgeTaggedGraph[{12, 23, 31}, EdgeLabels -> Placed["Name", StatusArea]]EdgeShapeFunction (6)
EdgeShapeFunctionの組込み設定のリストを得る：
ResourceData["EdgeShapeFunction"]EdgeTaggedGraph[{12, 23, 31}, EdgeShapeFunction -> "Line"]Table[EdgeTaggedGraph[{12, 23, 31}, EdgeShapeFunction -> {{ef, "ArrowSize" -> 0.1}}, PlotLabel -> ef], {ef, {"BoxLine", "DiamondLine", "DotLine"}}]Table[EdgeTaggedGraph[{12, 23, 31}, EdgeShapeFunction -> {{ef, "ArrowSize" -> 0.1}}, PlotLabel -> Style[ef, 10]], {ef, ResourceData["EdgeShapeFunction", "FilledArrow"]}]Table[EdgeTaggedGraph[{12, 23, 31}, EdgeShapeFunction -> {{ef, "ArrowSize" -> 0.1}}, PlotLabel -> Style[ef, 9]], {ef, ResourceData["EdgeShapeFunction", "UnfilledArrow"]}]Table[EdgeTaggedGraph[{12, 23, 31}, EdgeShapeFunction -> {{ef, "ArrowSize" -> 0.1}}, PlotLabel -> Style[ef, 10]], {ef, ResourceData["EdgeShapeFunction", "CarvedArrow"]}]EdgeTaggedGraph[{12, 23, 31}, EdgeShapeFunction -> {12 -> "FilledArrow"}]EdgeTaggedGraph[{12, 23, 31}, EdgeShapeFunction -> {12 -> "FilledArrow", "CarvedArrow"}]ef[pts_List, e_] :=
Block[{s = 0.015, g = [image]}, {Arrowheads[{{s, 0.33, g}, {s, 0.67, g}}], Arrow[pts]}]EdgeTaggedGraph[{12, 23, 31}, EdgeShapeFunction -> ef]EdgeShapeFunctionはEdgeStyleと組み合せることができる：
EdgeTaggedGraph[{12, 23, 31}, EdgeStyle -> Blue, EdgeShapeFunction -> (Line[#1]&)]EdgeShapeFunctionはEdgeStyleより優先順位が高い：
EdgeTaggedGraph[{12, 23, 31}, EdgeStyle -> Blue, EdgeShapeFunction -> ({Red, Line[#1]}&)]EdgeStyle (4)
Table[EdgeTaggedGraph[{12, 23, 31}, EdgeStyle -> style], {style, {Gray, Dashed, Thick}}]EdgeTaggedGraph[{12, 23, 31}, EdgeStyle -> {12 -> Blue, 23 -> Dashed}]EdgeStyleはEdgeShapeFunctionと組み合せることができる：
ef1[el_, ___] := Arrow[el, 0.1]EdgeTaggedGraph[{12, 23, 31}, EdgeStyle -> Blue, EdgeShapeFunction -> ef1]EdgeShapeFunctionはEdgeStyleより優先順位が高い：
ef2[el_, ___] := {Red, Arrow[el, 0.1]}EdgeTaggedGraph[{12, 23, 31}, EdgeStyle -> Blue, EdgeShapeFunction -> ef2]EdgeStyleはBaseStyleと組み合せることができる：
EdgeTaggedGraph[{12, 23, 31}, BaseStyle -> Red, EdgeStyle -> Dashed]EdgeTaggedGraph[{12, 23, 31}, BaseStyle -> Red, EdgeStyle -> Blue]EdgeWeight (2)
EdgeTaggedGraph[{12, 23, 31}, EdgeWeight -> RandomInteger[5, 3]]WeightedAdjacencyMatrix[%]//MatrixFormEdgeTaggedGraph[{12, 23, 31}, EdgeWeight -> {a, b, c}]WeightedAdjacencyMatrix[%]//MatrixFormGraphHighlight (3)
EdgeTaggedGraph[{12, 23, 31}, VertexSize -> Tiny, GraphHighlight -> {1}]EdgeTaggedGraph[{12, 23, 31}, VertexSize -> Tiny, GraphHighlight -> {23}]EdgeTaggedGraph[{12, 23, 31}, VertexSize -> Tiny, GraphHighlight -> {1, 2, 31, 23}]GraphHighlightStyle (2)
GraphHighlightStyleの組込み設定のリストを得る：
ResourceData["GraphHighlightStyle"]GraphHighlightStyleの組込み設定を使う：
EdgeTaggedGraph[{12, 23, 31}, GraphHighlight -> {1, 23}, VertexSize -> Small, GraphHighlightStyle -> #, PlotLabel -> #]& /@ Select[ResourceData["GraphHighlightStyle"], # =!= Automatic&]GraphLayout (5)
EdgeTaggedGraph[{12, 23, 31}, GraphLayout -> Automatic]Table[EdgeTaggedGraph[Table[ii + 1, {i, 20}], GraphLayout -> l, PlotLabel -> l], {l, {"CircularEmbedding", "SpiralEmbedding"}}]el = EdgeList@GridGraph[{10, 10}];Table[
EdgeTaggedGraph[el, GraphLayout -> l, PlotLabel -> Style[l, 10]], {l, {"SpringEmbedding", "SpringElectricalEmbedding", "HighDimensionalEmbedding"}}]VertexCoordinatesはGraphLayout座標を無効にする：
{EdgeTaggedGraph[{12, 23, 31}, GraphLayout -> "SpringElectricalEmbedding"],
EdgeTaggedGraph[{12, 23, 31}, GraphLayout -> "SpringElectricalEmbedding", VertexCoordinates -> Table[{i, i}, {i, 0, 2}]]}レイアウトアルゴリズムを使って計算されたVertexCoordinatesを，AbsoluteOptionsを使って抽出する：
EdgeTaggedGraph[{12, 23, 31}]AbsoluteOptions[%, VertexCoordinates]PlotTheme (4)
基本テーマ (2)
VertexCoordinates (3)
EdgeTaggedGraph[{12, 23, 31}]AbsoluteOptionsを使って結果の頂点座標を抽出する：
AbsoluteOptions[%, VertexCoordinates]ellipseLayout[n_, {a_, b_}] := Table[{a Cos[2Pi / n u], b Sin[2Pi / n u]}, {u, 1, n}]Graphics[Point[ellipseLayout[20, {2, 1}]]]EdgeTaggedGraph[Table[iMod[i + 1, 20, 1], {i, 20}], VertexCoordinates -> ellipseLayout[20, {2, 1}]]VertexCoordinatesはGraphLayoutより優先順位が高い：
EdgeTaggedGraph[{12, 23, 31}, VertexCoordinates -> Table[{i, i}, {i, 3}], GraphLayout -> "CircularEmbedding"]VertexLabels (13)
EdgeTaggedGraph[{12, 23, 31}, VertexLabels -> "Name"]EdgeTaggedGraph[{12, 23, 31}, VertexLabels -> {2 -> "one"}]EdgeTaggedGraph[{12, 23, 31}, VertexLabels -> Table[i -> Subscript[v, i], {i, 3}]]EdgeTaggedGraph[{12, 23, 31}, VertexLabels -> {1 -> [image], 2 -> [image], 3 -> [image]}, ImagePadding -> 30]Placedを記号位置と一緒に使って外側位置を含むラベルの置き方を制御する：
Table[EdgeTaggedGraph[{12, 23, 31}, VertexSize -> 0.1, VertexShapeFunction -> "Square", VertexLabels -> Table[i -> Placed["■", p], {i, 3}], PlotLabel -> p], {p, {Before, After, Below, Above}}]pl = {{Before, Below}, {After, Below}, {Before, Above}, {After, Above}};Table[EdgeTaggedGraph[{12, 23, 31}, VertexSize -> 0.1, VertexShapeFunction -> "Square", VertexLabels -> Table[i -> Placed["■", p], {i, 3}], PlotLabel -> p], {p, pl}]Table[EdgeTaggedGraph[{12, 23, 31}, VertexSize -> 0.25, VertexLabels -> Table[i -> Placed[[image], p], {i, 3}], VertexShapeFunction -> "Square", PlotLabel -> p], {p, {Left, Top, Right, Bottom}}]pl = {{Left, Bottom}, {Right, Bottom}, {Left, Top}, {Right, Top}};Table[EdgeTaggedGraph[{12, 23, 31}, VertexSize -> 0.25, VertexShapeFunction -> "Square", VertexLabels -> Table[i -> Placed[[image], p], {i, 3}], PlotLabel -> p], {p, pl}]Table[EdgeTaggedGraph[{12, 23, 31}, VertexSize -> 0.25, VertexShapeFunction -> "Square", VertexLabels -> Table[i -> Placed[[image], p], {i, 3}], PlotLabel -> p, BaselinePosition -> Axis], {p, {{0, 0}, {1 / 2, 1 / 2}, {1, 1}}}]すべてのラベルを頂点の右上コーナーに置き，ラベル内で座標を変える：
Table[EdgeTaggedGraph[{12, 23, 31}, VertexSize -> 0.35, VertexShapeFunction -> "Square", VertexLabels -> Table[i -> Placed[[image], {{1, 1}, p}], {i, 3}], PlotLabel -> p, BaselinePosition -> Axis], {p, {{0, 0}, {1 / 2, 1 / 2}, {1, 1}}}]Placedをラッパーに使って複数のラベルを置く：
EdgeTaggedGraph[{1, 2, Labeled[3, Placed[{"lbl1", "lbl2"}, {Above, Below}]]}, {12, 23, 31}]EdgeTaggedGraph[{1, 2, Labeled[3, Placed[{"lbl1", "lbl2", "lbl3", "lbl4"}, {Above, After, Below, Before}]]}, {12, 23, 31}]VertexLabelsを使って複数のラベルを置く：
EdgeTaggedGraph[{12, 23, 31}, VertexLabels -> {3 -> Placed[{"lbl1", "lbl2"}, {Above, Below}]}]Placedの引数を使ってTooltipを含むフォーマットを制御する：
EdgeTaggedGraph[{12, 23, 31}, VertexLabels -> Placed["Name", Tooltip]]あるいは，StatusAreaを含むフォーマットを制御する：
EdgeTaggedGraph[{12, 23, 31}, VertexLabels -> Placed["Name", StatusArea]]rotateLabel[lbl_] := Rotate[lbl, 45Degree]EdgeTaggedGraph[{12, 23, 31}, VertexLabels -> Table[i -> Placed["xxx", Below, rotateLabel], {i, 3}]]panelLabel[lbl_] := Panel[lbl, FrameMargins -> 0, Background -> Lighter[Yellow, 0.7]]EdgeTaggedGraph[{12, 23, 31}, VertexLabels -> Table[i -> Placed["xxx", Center, panelLabel], {i, 3}]]hyperlinkLabel[lbl_] := Hyperlink[lbl, "http://www.wolfram.com"]EdgeTaggedGraph[{12, 23, 31}, VertexLabels -> Table[i -> Placed["xxx", Center, hyperlinkLabel], {i, 3}]]VertexShape (5)
任意のGraphics，ImageあるいはGraphics3Dを頂点の形として使う：
Table[EdgeTaggedGraph[{12, 23, 31}, VertexShape -> s, VertexSize -> Medium], {s, {[image], [image], [image]}}]EdgeTaggedGraph[{12, 23, 31}, VertexShape -> {2 -> [image]}, VertexSize -> Medium]VertexShapeはVertexSizeと組み合せることができる：
Table[EdgeTaggedGraph[{12, 23, 31}, VertexSize -> s, VertexShape -> [image], PlotLabel -> s], {s, {Small, Large}}]VertexShapeはVertexStyleの影響は受けない：
EdgeTaggedGraph[{12, 23, 31}, VertexSize -> 0.2, VertexShape -> [image], VertexStyle -> Blue]VertexShapeFunctionはVertexShapeより優先順位が高い：
EdgeTaggedGraph[{12, 23, 31}, VertexSize -> 0.1, VertexShapeFunction -> "Square", VertexShape -> [image]]VertexShapeFunction (11)
VertexShapeFunctionの組込みコレクションのリストを得る：
ResourceData["VertexShapeFunction"]"Basic"コレクション中のVertexShapeFunctionについての設定を使う：
ResourceData["VertexShapeFunction", "Basic"]Table[EdgeTaggedGraph[{12, 23, 31}, VertexShapeFunction -> vf, VertexSize -> 0.2, PlotLabel -> vf], {vf, {"Triangle", "Square", "Rectangle", "Pentagon", "Hexagon", "Octagon"}}]Table[EdgeTaggedGraph[{12, 23, 31}, VertexShapeFunction -> vf, VertexSize -> 0.2, PlotLabel -> vf], {vf, {"DownTrapezoid", "UpTrapezoid", "Parallelogram", "FiveDown", "Circle", "Diamond", "Star", "Capsule"}}]"Rounded"コレクション中のVertexShapeFunctionについての組込み設定を使う：
ResourceData["VertexShapeFunction", "Rounded"]Table[EdgeTaggedGraph[{12, 23, 31}, VertexShapeFunction -> vf, VertexSize -> 0.2, PlotLabel -> Style[vf, 9]], {vf, ResourceData["VertexShapeFunction", "Rounded"]}]"Concave"コレクション中のVertexShapeFunctionについての組込み設定を使う：
ResourceData["VertexShapeFunction", "Concave"]Table[EdgeTaggedGraph[{12, 23, 31}, VertexShapeFunction -> vf, VertexSize -> 0.2, PlotLabel -> vf], {vf, ResourceData["VertexShapeFunction", "Concave"]}]EdgeTaggedGraph[{12, 23, 31}, VertexShapeFunction -> { 1 -> "Square"}, VertexSize -> 0.2]EdgeTaggedGraph[{12, 23, 31}, VertexShapeFunction -> { 1 -> "Square", "Triangle"}, VertexSize -> 0.2]EdgeTaggedGraph[{12, 23, 31}, VertexShapeFunction -> (Inset[[image], #]&)]vf[{xc_, yc_}, name_, {w_, h_}] :=
Block[{xmin = xc - w, xmax = xc + w, ymin = yc - h, ymax = yc + h},
Polygon[{{xmin, ymin}, {xmax, ymax}, {xmin, ymax}, {xmax, ymin}}]
];EdgeTaggedGraph[{12, 23, 31}, VertexShapeFunction -> vf, VertexSize -> 0.2]VertexShapeFunctionはVertexStyleと組み合せることができる：
vf1[{xc_, yc_}, name_, {w_, h_}] := Rectangle[{xc - w, yc - h}, {xc + w, yc + h}]EdgeTaggedGraph[{12, 23, 31}, VertexSize -> 0.2, VertexStyle -> Blue, VertexShapeFunction -> vf1]VertexShapeFunctionはVertexStyleより優先順位が高い：
vf2[{xc_, yc_}, name_, {w_, h_}] := {Red, Rectangle[{xc - w, yc - h}, {xc + w, yc + h}]}EdgeTaggedGraph[{12, 23, 31}, VertexSize -> 0.2, VertexStyle -> Blue, VertexShapeFunction -> vf2]VertexShapeFunctionはVertexSizeと組み合せることができる：
EdgeTaggedGraph[{12, 23, 31}, VertexShapeFunction -> "Star", VertexSize -> {1 -> Small, Medium}]VertexShapeFunctionはVertexShapeより優先順位が高い：
EdgeTaggedGraph[{12, 23, 31}, VertexSize -> 0.3, VertexShapeFunction -> "Star", VertexShape -> [image]]VertexSize (8)
EdgeTaggedGraph[{12, 23, 31}, VertexSize -> Automatic]Table[EdgeTaggedGraph[{12, 23, 31}, VertexSize -> s, PlotLabel -> s], {s, {Tiny, Small, Medium, Large}}]Table[EdgeTaggedGraph[{12, 23, 31}, VertexSize -> s, PlotLabel -> s], {s, 0.1, 1, 0.3}]Table[EdgeTaggedGraph[{12, 23, 31}, VertexSize -> {"Scaled", s}, PlotLabel -> {"Scaled", s}], {s, 0.1, 1, 0.3}]
Table[EdgeTaggedGraph[{12, 23, 31}, VertexSize -> s, PlotLabel -> s], {s, {{0.1, 0.2}, {0.2, 0.1}}}]EdgeTaggedGraph[{12, 23, 31}, VertexSize -> {1 -> 0.2, 2 -> 0.3}]VertexSizeはVertexShapeFunctionと組み合せることができる：
Table[EdgeTaggedGraph[{12, 23, 31}, VertexSize -> s, VertexShapeFunction -> "Square", PlotLabel -> s], {s, {0.05, 0.1, 0.2}}]VertexSizeはVertexShapeと組み合せることができる：
Table[EdgeTaggedGraph[{12, 23, 31}, VertexSize -> s, VertexShape -> [image], PlotLabel -> s], {s, {0.1, 0.2, 0.4}}]VertexStyle (5)
Table[EdgeTaggedGraph[{12, 23, 31}, VertexStyle -> style, VertexSize -> 0.2], {style, {Yellow, EdgeForm[Dashed]}}]EdgeTaggedGraph[{12, 23, 31}, VertexStyle -> {1 -> Blue, 2 -> Red}, VertexSize -> 0.2]VertexShapeFunctionはVertexStyleと組み合せることができる：
vf1[{xc_, yc_}, name_, {w_, h_}] := Rectangle[{xc - w, yc - h}, {xc + w, yc + h}]EdgeTaggedGraph[{12, 23, 31}, VertexSize -> 0.2, VertexStyle -> Blue, VertexShapeFunction -> vf1]VertexShapeFunctionはVertexStyleより優先順位が高い：
vf2[{xc_, yc_}, name_, {w_, h_}] := {Red, Rectangle[{xc - w, yc - h}, {xc + w, yc + h}]}EdgeTaggedGraph[{12, 23, 31}, VertexSize -> 0.2, VertexStyle -> Blue, VertexShapeFunction -> vf2]VertexStyleはBaseStyleと組み合せることができる：
EdgeTaggedGraph[{12, 23, 31}, VertexStyle -> LightBlue, BaseStyle -> EdgeForm[Dotted], VertexSize -> 0.2]VertexStyleはBaseStyleより優先順位が高い：
EdgeTaggedGraph[{12, 23, 31}, VertexStyle -> LightBlue, BaseStyle -> Gray, VertexSize -> 0.2]VertexShapeはVertexStyleの影響は受けない：
EdgeTaggedGraph[{12, 23, 31}, VertexSize -> 0.2, VertexShape -> [image], VertexStyle -> Blue]VertexWeight (3)
EdgeTaggedGraph[{12, 23, 31}, VertexWeight -> {2, 3, 4}]AnnotationValue[{%, 1}, VertexWeight]EdgeTaggedGraph[{12, 23, 31}, VertexWeight -> {1 -> 2}]AnnotationValue[{%, 1}, VertexWeight]EdgeTaggedGraph[{12, 23, 31}, VertexWeight -> {a, b, c}]AnnotationValue[{%, 1}, VertexWeight]アプリケーション (4)
基本的なアプリケーション (1)
グラフの注釈 (3)
EdgeTaggedGraph[{12, 12, 12}, EdgeLabels -> "Index"]EdgeTaggedGraph[{12, 13, 12, 32, 12}, EdgeStyle -> (_ :> RandomColor[])]g = EdgeTaggedGraph[{Annotation[12, "name" -> "A"], Annotation[12, "name" -> "B"], Annotation[12, "name" -> "C"]}]AnnotationValue[{g, {1Overscript[, 1]2, 1Overscript[, 2]2, 1Overscript[, 3]2}}, "name"]特性と関係 (7)
VertexCountとEdgeCountを使って頂点と辺を数える：
g = EdgeTaggedGraph[Table[iMod[i + 1, 2], {i, 20}]]{VertexCount[g], EdgeCount[g]}VertexListとEdgeListを使って頂点と辺を標準的な順序で列挙する：
g = EdgeTaggedGraph[{12, 23, 31}];{VertexList[g], EdgeList[g]}g1 = EdgeTaggedGraph[{23, 31, 12}];{VertexList[g1], EdgeList[g1]}g2 = EdgeTaggedGraph[{31, 23, 12}];{VertexList[g2], EdgeList[g2]}グラフからAdjacencyMatrixを計算する：
g = EdgeTaggedGraph[{ab, bc, ca}];(m = AdjacencyMatrix[g]//Normal)//MatrixFormEdgeTaggedGraph[{12, 23, 31}];EdgeTaggedGraphQ[%]EdgeTagsを使って辺のタグのリストを得る：
EdgeTaggedGraph[{12, 23, 31}]EdgeTags[%]IndexEdgeTaggedGraphを使ってタググラフを得ることができる：
IndexEdgeTaggedGraph[{12, 23, 31}]EdgeTaggedGraphQ[%]DirectedEdgeまたはUndirectedEdgeを使って辺が有向か無向かを直接指定する：
{EdgeTaggedGraph[{12, 23, 31}], EdgeTaggedGraph[{12, 23, 31}]}考えられる問題 (1)

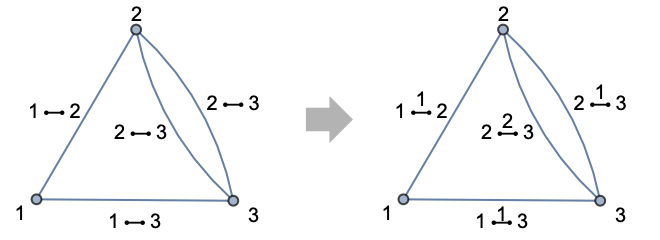

平行辺はGraph内では識別できない：
Graph[{Style[12, Red], Style[12, Blue], 23, 31}]EdgeTaggedGraphを使って各辺に一意的なタグを割り当てる：
EdgeTaggedGraph[{Style[12, Red], Style[12, Blue], 23, 31}]EdgeList[%]
