SectorChart[{{x1,y1},{x1,y2},…}]
制作一个扇形图表,其扇形角和 xi 成比例,并且有半径 yi.
SectorChart[{…,wi[{xi,yi},…],…,wj[{xj,yj},…],…}]
制作一个扇形图表,其扇形特性由符号封装 wk 定义.
SectorChart[{data1,data2,…}]
绘制多个数据集 datai 的一个扇形图表.
SectorChart
SectorChart[{{x1,y1},{x1,y2},…}]
制作一个扇形图表,其扇形角和 xi 成比例,并且有半径 yi.
SectorChart[{…,wi[{xi,yi},…],…,wj[{xj,yj},…],…}]
制作一个扇形图表,其扇形特性由符号封装 wk 定义.
SectorChart[{data1,data2,…}]
绘制多个数据集 datai 的一个扇形图表.
更多信息和选项
- SectorChart 的数据元素可以给出下列形式:
-
{xi,yi} 扇形角和半径 {Quantity[xi,ux],Quantity[yi,uy]} 具有单位的扇区角度和半径 wi[{xi,yi},…] 大小 {xi,yi} 和封装 wi 的扇形 formi->mi 有元数据 mi 的一个扇形 - 没有按这些形式给出的数据在扇形图表的形成过程中被忽略.
- SectorChart 中的数据集可以给出下列形式:
-
{e1,e2,…} 有或无包装的元素列表 <|k1e1,k2e2,…|> 键和长度的相关性 TimeSeries[…],EventSeries[…],TemporalData[…] 时间序列、活动序列和时间数据 WeightedData[…] 具有权值的数据集 w[{e1,e2,…},…] 包装应用于整个数据集 w[{data1,data1,…},…] 包装应用于所有数据集 - SectorChart[Tabular[…]cspec] 用列指定 cspec 从表格对象中提取值并绘制.
- 可使用以下形式的列指定 cspec 来绘制表格数据:
-
{colx,coly} 绘制列 y 与列 x {{colx1,coly1},{colx2,coly2},…} 绘制列 y1 与列 x1,y2 与 x2、… - 下列包装可以用于图表元素:
-
Annotation[e,label] 提供一个注解 Button[e,action] 当点击元素时,执行的行为 Callout[e,label] 用标注 (callout) 显示元素 EventHandler[e,…] 定义元素的普通事件处理 Hyperlink[e,uri] 使得元素作为一个超链接 Labeled[e,…] 用标签显示元素 Legended[e,…] 在一个图例中元素的特例 Mouseover[e,over] 使得元素显示为一个鼠标指向的形式 PopupWindow[e,cont] 元素增加一个弹出窗口 StatusArea[e,label] 当鼠标指向时,在状态栏上显示 Style[e,opts] 用指定的样式显示元素 Tooltip[e,label] 为元素增加一个提示工具 - 在 SectorChart 中, Labeled, Callout 和 Placed 允许使用下列名称位置:
-
"RadialOuter","RadialCenter","RadialInner" 扇形内的位置 "RadialOutside","RadialInside","RadialEdge" 扇形外的位置 "RadialCallout" 标注线的位置 {{sθ,sr},{lx,ly}} 缩放标签中坐标 {lx,ly} 到扇形中极坐标 {sθ,sr} - 在 SectorChart 中,Callout 允许使用下列位置 pos:
-
Automatic 自动放置 {x,y} 图形中的位置 Scaled[{sθ,sr}] 扇形中缩放过的极坐标位置 {sθ,sr} {pos,{lx,ly}} 位置 pos 处的标签中缩放过的位置 {lx,ly} - SectorChart 有和 Graphics 相同的选项,并增加下列变化: [所有选项的列表]
-
ChartBaseStyle Automatic 扇形的整体样式 ChartElementFunction Automatic 如何产生扇形的原图形 ChartLabels None 数据元素和数据集的标签 ChartLayout Automatic 使用的整体布局 ChartLegends None 数据元素和数据集的图例 ChartStyle Automatic 扇形的样式 ColorFunction Automatic 如何着色扇形 ColorFunctionScaling True 是否归一化传递给 ColorFunction 的参数 LabelingFunction Automatic 如何标注扇形 LabelingSize Automatic 标注和标签的最大尺寸 LegendAppearance Automatic 图例的整体外观 PerformanceGoal $PerformanceGoal 优化的目标 PlotInteractivity $PlotInteractivity 是否允许绘制互动元素 PlotRange Automatic 包含值的范围 PlotTheme $PlotTheme 图表的整体主题 PolarAxes False 是否绘制极轴 PolarAxesOrigin Automatic 在哪里绘制极轴 PolarGridLines None 极坐标网格线 PolarTicks Automatic 极轴刻度 SectorOrigin Automatic 初始角度和扇形弧度 SectorSpacing Automatic 扇形间的间距 TargetUnits Automatic 图表中显示的单位 - 在单个显示平板中包括多个数据组的 ChartLayout 可能设置包括:
-

"Grouped" 分离每个数据集的数据

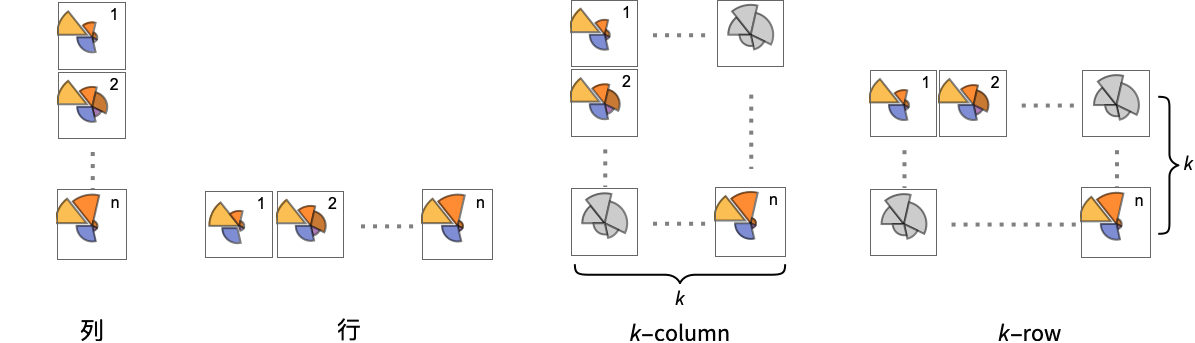

"Stacked" 累积每个数据集的数据 - 在不同面板中显示单个数据组的 ChartLayout 的可能设置包括:
-
"Column" 在一列面板中分别使用不同扇区组 "Row" 在一行面板中分别使用不同扇区组 {"Column",k},{"Row",k} 使用 k 列或行 {"Column",UpTo[k]},{"Row",UpTo[k]} 使用至多 k 列或行 - ChartElementFunction 的参数是扇形区域 {{θmin,θmax},{rmin,rmax}},值 {xi,yi} 和数据集的嵌套列表中每层的元数据 {m1,m2,…}.
- ChartElementFunction 的内置列表可以从 ChartElementData["SectorChart"] 得到.
- ColorFunction 的参数是 θ 和 r,θ 是扇形的角度,r 是半径.
- SectorChart 中选项和其它结构的样式和其它设置按照 ChartStyle、ColorFunction、Style 和 和其他包装和 ChartElementFunction,后面的设置会屏蔽之前的设置.

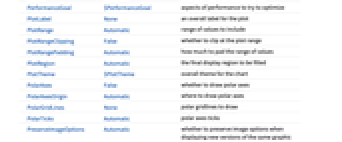

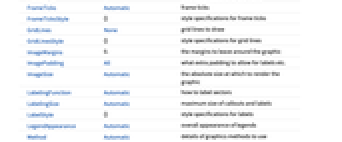

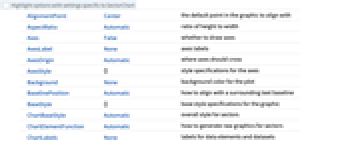

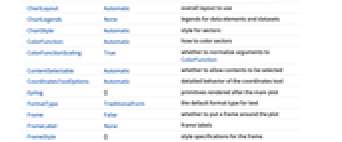

所有选项的列表
范例
打开所有单元 关闭所有单元基本范例 (5)
SectorChart[{{1, 1}, {1, 2}, {1, 3}}]SectorChart[{{1, 1}, {1, 2}, {1, 3}}, SectorOrigin -> {Automatic, 1}]SectorChart[{{{1, 1}, {1, 2}, {1, 3}}, {{7, 3}, {5, 2}, {1, 1}}}]SectorChart[{{{1, 1}, {1, 2}, {1, 3}}, {{7, 3}, {5, 2}, {1, 1}}}, ChartLayout -> "Row"]SectorChart[{{1, 1}, {1, 2}, {1, 3}}, ChartLabels -> {"a", "b", "c"}]SectorChart[{{1, 1}, {1, 2}, {1, 3}}, ChartLegends -> {"a", "b", "c"}]SectorChart[Tuples[{1, 2, 3}, 2], ChartStyle -> "Pastel"]范围 (39)
数据和布局 (13)
SectorChart[{{{1, 1}, {1, 2}, {1, 3}}, {{2, 1}, {2, 2}, {2, 3}}, {{3, 1}, {3, 2}, {3, 3}}}]SectorChart[{{{1, 2}, {2, 3}}, {{1, 1}, {2, 2}, {3, 3}}, {{1, 1}, {2, 2}, {3, 3}, {4, 4}}}]SectorChart[{{{1, 2}, {2, 3}}, {{1, 1}, {2, Missing[]}, {3, 3}}, {{1, 1}, {2, 2}, {foo, 3}, {4, 4}}}]SectorChart[{{Quantity[1, "Seconds"], Quantity[2, "Meters"]}, {Quantity[1, "Seconds"], Quantity[3, "Meters"]}, {Quantity[2, "Seconds"], Quantity[5, "Meters"]}, {Quantity[3, "Seconds"], Quantity[7, "Meters"]}, {Quantity[5, "Seconds"], Quantity[11, "Meters"]}}]忽略 TimeSeries、EventSeries 和 TemporalData 中的时间戳:
SectorChart[TimeSeries[{{19, 16}, {9, 3}, {7, 2}, {17, 5}}, {"May 24, 1982"}]]SectorChart[<|"a" -> {2, 3}, "b" -> {4, 6}, "c" -> {5, 8}, "d" -> {3, 7}|>]SectorChart[<|"a" -> {2, 3}, "b" -> {4, 6}, "c" -> {5, 8}, "d" -> {3, 7}|>, ChartLabels -> Placed[Automatic, "RadialCallout"]]SectorChart[<|"a" -> {2, 3}, "b" -> {4, 6}, "c" -> {5, 8}, "d" -> {3, 7}|>, ChartLabels -> Callout[Automatic]]SectorChart[<|"a" -> {2, 3}, "b" -> {4, 6}, "c" -> {5, 8}, "d" -> {3, 7}|>, ChartStyle -> 66, ChartLegends -> Automatic]SectorChart[<|"group a" -> <|"a" -> {1, 1}, "b" -> {2, 3}, "c" -> {5, 8}, "d" -> {3, 7}|>, "group b" -> <|"a" -> {1, 1}, "b" -> {3, 2}, "c" -> {5, 3}, "d" -> {7, 2}|>|>, ChartLegends -> Automatic]忽略 WeightedData 中的权值:
SectorChart[WeightedData[{{1, 2}, {3, 4}, {5, 6}}, {0.5, 0.2, 0.1}]]Table[SectorChart[RandomInteger[{1, 4}, {2, 10, 2}], ChartLayout -> l], {l, {"Grouped", "Stacked"}}]SectorChart[{IconizedObject[«data #1»], IconizedObject[«data #2»], IconizedObject[«data #3»]}, ImageSize -> Medium, ChartLayout -> "Row"]SectorChart[{IconizedObject[«data #1»], IconizedObject[«data #2»], IconizedObject[«data #3»]}, ImageSize -> Medium, ChartLayout -> "Column"]SectorChart[{IconizedObject[«data #1»], IconizedObject[«data #2»], IconizedObject[«data #3»], IconizedObject[«data #4»]}, ImageSize -> Medium, ChartLayout -> {"Row", 2}]Table[SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, SectorOrigin -> o, PlotLabel -> o], {o, {{Pi / 6, "Clockwise"}, {Pi / 6, "Counterclockwise"}}}]Table[SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, SectorOrigin -> o, PlotLabel -> o], {o, {0, Pi / 2}}]Table[SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, SectorOrigin -> o, PlotLabel -> o], {o, {{{0, "Clockwise"}, 0}, {{0, "Clockwise"}, 1}}}]Table[SectorChart[{{{2, 1}, {3, 4}, {4, 2}, {3, 4}}, {{2, 2}, {2, 3}, {3, 2}, {4, 3}}}, SectorSpacing -> s, PlotLabel -> s, ChartStyle -> Opacity[0.8]], {s, {Automatic, {0, 1}, {0.1, 1}}}]表格数据 (1)
tabdata = AggregateRows[Tabular[ResourceData["Sample Data: 1993 US Cars"]], {"AvgPrice" -> (Mean[#AvgPrice]&), "TotalCars" -> (Length[#AvgPrice]&), "AvgWeight" -> (Mean[#Weight]&), "AvgFuelTankCap" -> (Mean[#FuelTankCapacity]&)}, {"Type"}]SectorChart[tabdata -> {"TotalCars", "AvgPrice"}, ChartLabels -> Normal[tabdata[All, "Type"]]]包装 (4)
{{d1, d2, d3, d4}, {w1, w2, w3, w4}} = {{{2, 1}, {3, 4}, {4, 2}, {3, 4}}, {{2, 2}, {2, 3}, {3, 2}, {4, 3}}};{SectorChart[{{d1, Style[d2, Red], d3, d4}, {w1, w2, w3, w4}}], SectorChart[{Style[{d1, d2, d3, d4}, Green], {w1, w2, w3, w4}}], SectorChart[Style[{{d1, d2, d3, d4}, {w1, w2, w3, w4}}, Blue]]}{SectorChart[{{d1, Style[d2, Red], d3, d4}, {w1, w2, w3, w4}}], SectorChart[{Style[{d1, Style[d2, Red], d3, d4}, Green], {w1, w2, w3, w4}}], SectorChart[Style[{Style[{d1, Style[d2, Red], d3, d4}, Green], {w1, w2, w3, w4}}, Blue]]}SectorChart[{{1, 3}, {2, 1}, Tooltip[{3, 3}, "median"], {4, 2}}]SectorChart[Table[Tooltip[{QuantityMagnitude@CountryData[c, "Population"], QuantityMagnitude@CountryData[c, "LifeExpectancy"]}, CountryData[c, "Flag"]], {c, CountryData["G8"]}]]用 PopupWindow 进一步提供信息:
SectorChart[{{1, 3}, {2, 1}, PopupWindow[{3, 3}, DateListPlot[FinancialData["IBM", "Jan. 1, 2004"]]], {4, 2}}]Button 可以用于触发任何行为:
SectorChart[{{1, 3}, {2, 1}, Button[{3, 3}, Speak[3]], {4, 2}}]样式和外观 (9)
SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, ChartStyle -> {Red, Green, Blue, Yellow}]使用 ColorData 中任何梯度或索引颜色方案:
{SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, ChartStyle -> "AvocadoColors"], SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, ChartStyle -> 52]}ColorData["Charting"]data = RandomInteger[{1, 4}, {10, 2}];Table[SectorChart[data, ChartStyle -> i, Axes -> None], {i, RandomChoice[ColorData["Charting"], 4]}]{SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, PlotTheme -> "Web"], SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, PlotTheme -> "Marketing"], SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, PlotTheme -> "Monochrome"]}ChartBaseStyle 可以对所有图表元素设置一个初始样式:
SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, ChartBaseStyle -> EdgeForm[Dashed], ChartStyle -> 45]Style 可以用于屏蔽样式:
SectorChart[{{1, 3}, Style[{2, 1}, Red], {3, 3}, {4, 2}}, ChartStyle -> 45]ChartElementData["SectorChart"]Table[SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, ChartElementFunction -> f, ChartStyle -> "Pastel"], {f, {"NoiseSector", "PlateauSector"}}]SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, ChartElementFunction -> ChartElementDataFunction["GlassSector", "GradientDirection" -> "Angular"], ChartStyle -> "SolarColors"]SectorChart[{{1, 3}, {2, 2}, {3, 3}, {4, 2}}, PlotTheme -> "Marketing"]SectorChart[{{{4, 9}, {7, 4}, {4, 10}, {7, 4}, {4, 9}}, {{7, 4}, {5, 7}, {9, 8}, {8, 4}, {9, 4}}}, PlotTheme -> "Monochrome"]标签和图例 (12)
使用 Labeled 对扇区添加标签:
SectorChart[{{1, 3}, {2, 1}, Labeled[{3, 3}, "label"], {4, 2}}]Table[SectorChart[{{1, 3}, {2, 1}, Labeled[{3, 3}, "label", p], {4, 2}}, PlotLabel -> p, SectorOrigin -> {Automatic, 1}], {p, {"RadialInner", "RadialCenter", "RadialOuter"}}]Table[SectorChart[{{1, 3}, {2, 1}, Labeled[{3, 3}, "label", p], {4, 2}}, PlotLabel -> p, SectorOrigin -> {Automatic, 1}], {p, {"RadialInside", "RadialOutside"}}]Table[SectorChart[{Labeled[{1, 3}, "L1", p], Labeled[{2, 1}, "L2", p], Labeled[{3, 3}, "L3", p], Labeled[{4, 2}, "L4", p]}, PlotLabel -> p], {p, {"RadialCallout", "VerticalCallout"}}]SectorChart[{{{2, 1}, {2, 3}, {3, 4}, {4, 2}}, {{2, 3}, {4, 3}, {2, 3}, {3, 2}}}, ChartLabels -> {"c1", "c2", "c3"}]SectorChart[{{{2, 1}, {2, 3}, {3, 4}, {4, 2}}, {{2, 3}, {4, 3}, {2, 3}, {3, 2}}}, ChartLabels -> {{"r1", "r2"}, None}, SectorSpacing -> 2]SectorChart[{{{2, 1}, {2, 3}, {3, 4}, {4, 2}}, {{2, 3}, {4, 3}, {2, 3}, {3, 2}}}, ChartLabels -> {{"r1", "r2"}, {"c1", "c2", "c3"}}, SectorSpacing -> 2]使用 Placed 来控制标签位置,使用与 Labeled 中相同的位置:
SectorChart[{{{2, 1}, {2, 3}, {3, 4}, {4, 2}}, {{2, 3}, {4, 3}, {2, 3}, {3, 2}}}, ChartLabels -> {Placed[{"r1", "r2"}, "RadialOutside"], Placed[{"c1", "c2", "c3"}, "RadialCenter"]}, SectorSpacing -> 2]用 Callout 为扇区添加标签:
SectorChart[{{2, 1}, Callout[{2, 3}, "label"], {3, 4}}]SectorChart[{{2, 1}, Callout[{2, 3}, "label", Appearance -> "Balloon"], {3, 4}}]SectorChart[Callout[#, Unique["text"]]& /@ RandomReal[{0.3, 1}, {6, 2}]]通过使用 LabelingFunction 添加数值标签:
SectorChart[{{2, 1}, {2, 3}, {3, 4}, {4, 2}}, LabelingFunction -> "RadialOutside"]SectorChart[RandomInteger[{3, 10}, {6, 2}], LabelingFunction -> (Callout[Style[Total@#, 10 + #[[2]]], Automatic]&)]SectorChart[{{{2, 1}, {2, 3}, {3, 4}, {4, 2}}, {{2, 3}, {4, 3}, {2, 3}, {3, 2}}}, ChartLegends -> {"ccc1", "ccc2", "ccc3", "ccc4"}, ChartStyle -> "Pastel"]SectorChart[{{{2, 1}, {2, 3}, {3, 4}, {4, 2}}, {{2, 3}, {4, 3}, {2, 3}, {3, 2}}}, ChartLegends -> {{"rr1", "rr2"}, None}, ChartStyle -> {"Pastel", None}]使用 Legended 来添加额外的图例项目:
SectorChart[{{{2, 1}, Legended[{2, 3}, "extra"], {3, 4}, {4, 2}}, {{2, 3}, {4, 3}, {2, 3}, {3, 2}}}, ChartLegends -> {"aaa", "bbb", "ccc", "ddd"}]使用 Placed 来影响图例位置:
Table[SectorChart[{{{2, 1}, {2, 3}, {3, 4}, {4, 2}}, {{2, 3}, {4, 3}, {2, 3}, {3, 2}}}, ChartLegends -> Placed[{"ccc1", "ccc2", "ccc3", "ccc4"}, p]], {p, {Below, Above}}]选项 (85)
AspectRatio (4)
SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}]通过 AspectRatio1 使高等和宽度相等:
SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, AspectRatio -> 1]SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, AspectRatio -> 1 / 2]AspectRatioFull 调整高度和宽度以便可以恰当地放在其他结构的里面:
plot = SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, AspectRatio -> Full];{Framed[Pane[plot, {50, 100}]], Framed[Pane[plot, {100, 100}]], Framed[Pane[plot, {100, 50}]]}Axes (3)
默认情况下不绘制 Axes:
SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}]SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, Axes -> True]{SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, Axes -> {True, False}], SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, Axes -> {False, True}]}AxesLabel (3)
SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, Axes -> True]SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, Axes -> True, AxesLabel -> label]SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, Axes -> True, AxesLabel -> {x, y}]AxesOrigin (2)
AxesStyle (3)
SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, Axes -> True, AxesStyle -> Red]SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, Axes -> True, AxesStyle -> {{Thick, Red}, {Thick, Blue}}]SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, Axes -> True, AxesStyle -> Green, TicksStyle -> Red]ChartBaseStyle (5)
用 ChartBaseStyle 设置所有扇形的样式:
Table[SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, ChartBaseStyle -> s], {s, {EdgeForm[Dashed], Opacity[0.7]}}]ChartBaseStyle 和 ChartStyle 连用:
SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, ChartStyle -> 24, ChartBaseStyle -> EdgeForm[Dashed]]ChartStyle 可能屏蔽 ChartBaseStyle 的设置:
SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, ChartStyle -> EdgeForm[None], ChartBaseStyle -> EdgeForm[Dashed]]ChartBaseStyle 和 Style 连用:
SectorChart[{{1, 1}, Style[{1, 2}, Yellow], {2, 3}, {3, 2}}, ChartBaseStyle -> EdgeForm[Dashed]]Style 可能屏蔽 ChartBaseStyle 的设置:
SectorChart[{{1, 1}, Style[{1, 2}, EdgeForm[None]], {2, 3}, {3, 2}}, ChartBaseStyle -> EdgeForm[Dashed]]ChartBaseStyle 和 ColorFunction 连用:
SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, ChartBaseStyle -> EdgeForm[Dashed], ColorFunction -> Function[{x, y}, ColorData["Pastel"][x * y]]]ColorFunction 可能屏蔽 ChartBaseStyle 的设置:
SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, ChartBaseStyle -> EdgeForm[Dashed], ColorFunction -> (EdgeForm[None]&)]ChartElementFunction (5)
获得 ChartElementFunction 内置的设置列表:
ChartElementData["SectorChart"]Table[SectorChart[Tuples[{1, 2}, 2], ChartElementFunction -> f, ChartStyle -> "Pastel", PlotLabel -> f], {f, {"Sector", "PlateauSector"}}]Table[SectorChart[Tuples[{1, 2}, 2], ChartElementFunction -> f, ChartStyle -> "Pastel", PlotLabel -> f], {f, {"NoiseSector", "OscillatingSector"}}]Table[SectorChart[Tuples[{1, 2}, 2], ChartElementFunction -> f, ChartStyle -> "Pastel", PlotLabel -> f], {f, {"SquareWaveSector", "TriangleWaveSector"}}]Table[SectorChart[Tuples[{1, 2}, 2], ChartElementFunction -> f, ChartStyle -> "Pastel", PlotLabel -> f], {f, {"GlassSector", "GradientSector"}}]用 ChartElementData 指定相同的图形渲染函数如上:
SectorChart[Tuples[{1, 2}, 2], ChartElementFunction -> Function[{angleRadiusMinMax, yr, meta}, ChartElementData["TriangleWaveSector"][angleRadiusMinMax, yr, meta]]]写入一个定制的 ChartElementFunction:
f[{{t0_, t1_}, {r0_, r1_}}, ___] := Disk[{0, 0}, r1, {t0, t1}]SectorChart[Tuples[{1, 2}, 2], ChartElementFunction -> f]g[{{t0_, t1_}, {r0_, r1_}}, ___] := GraphicsGroup[{Circle[{0, 0}, r0, {t0, t1}], Circle[{0, 0}, r1, {t0, t1}],
Line[{r0{Cos[t0], Sin[t0]}, r1{Cos[t1], Sin[t1]}}], Line[{r0{Cos[t1], Sin[t1]}, r1{Cos[t0], Sin[t0]}}]}]SectorChart[Tuples[{1, 2}, 2], ChartBaseStyle -> Thick, ChartStyle -> Blue, ChartElementFunction -> g]DataDrilldownSector[{{t0_, t1_}, {r0_, r1_}}, y_, {data_List}] :=
PopupWindow[ChartElementData["NoiseSector"][{{t0, t1}, {r0, r1}}, y], BarChart[data]]DataDrilldownSector[{{t0_, t1_}, {r0_, r1_}}, y_, _] :=
ChartElementData["Sector"][{{t0, t1}, {r0, r1}}, y]SectorChart[{{1, 1} -> Range[5], {1, 2}, {2, 1} -> RandomReal[1, 10], {2, 2}}, ChartElementFunction -> DataDrilldownSector]ChartLabels (8)
SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, ChartLabels -> {"a", "b", "c", "d"}]数据中的 Labeled 包装将放置其它标签:
SectorChart[{{1, 1}, Labeled[{1, 2}, "label", "RadialOutside"], {2, 3}, {3, 2}}, ChartLabels -> {"a", "b", "c", "d"}]用 Placed 控制标签放置:
Table[SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, ChartLabels -> Placed[{"a", "b", "c", "d"}, p], PlotLabel -> p], {p, {"RadialInner", "RadialCenter", "RadialOuter"}}]Table[SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, SectorOrigin -> {Automatic, 1}, ChartLabels -> Placed[{"a", "b", "c", "d"}, p], PlotLabel -> p, Ticks -> None], {p, {"RadialInside", "RadialOutside", "RadialEdge"}}]Table[SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, SectorOrigin -> {Automatic, 1}, ChartLabels -> Placed[{"a", "b", "c", "d"}, p], PlotLabel -> p, Ticks -> None], {p, {"RadialCallout", "VerticalCallout"}}]Table[SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, SectorOrigin -> {Automatic, 1}, ChartLabels -> Placed[{"aa", "bb", "cc", "dd"}, p], PlotLabel -> p], {p, {{0.1, 0.1}, {1 / 2, 1 / 2}, {1, 1}}}]Table[SectorChart[{{1, 2}, {2, 3}, {3, 2}}, SectorOrigin -> {Automatic, 1}, ChartLabels -> Placed[Framed /@ {"aa", "bb", "cc"}, {{1, 1}, p}], PlotLabel -> p], {p, {{0, 0}, {1 / 2, 1 / 2}, {1, 1}}}]用 Placed 的第三个参数控制格式化:
SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, ChartLabels -> Placed[{"aaa", "bbb", "ccc", "ddd"}, "RadialCenter", Rotate[#, 45Degree]&]]SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, ChartLabels -> Placed[{"aaa", "bbb", "ccc", "ddd"}, "RadialCenter", Panel[#, FrameMargins -> 0]&]]SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, ChartLabels -> Placed[{"aaa", "bbb", "ccc", "ddd"}, "RadialCenter", Hyperlink[#, "http://www.wolfram.com"]&]]data = {{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, {{1, 1}, {2, 2}, {2, 3}}};{SectorChart[data, ChartLabels -> {"c1", "c2", "c3", "c4"}],
SectorChart[data, ChartLabels -> {None, {"c1", "c2", "c3", "c4"}}]}SectorChart[data, ChartLabels -> {{"r1", "r2"}, None}]SectorChart[data, ChartLabels -> {{"r1", "r2"}, {"c1", "c2", "c3", "c4"}}]用 Placed 影响位置:
SectorChart[data, ChartLabels -> {Placed[{"r1", "r2"}, "RadialOutside"], Placed[{"c1", "c2", "c3", "c4"}, "RadialCenter"]}, SectorSpacing -> 2]用 Callout 来把标签连接到扇区:
SectorChart[{{1, 1}, {1, 2}, {3, 2}}, ChartLabels -> Callout[{"c1", "c2", "c3"}, Automatic]]SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, ChartLabels -> Placed[{{"a", "b", "c", "d"}, {"x", "y", "z", "w"}}, {"RadialCenter", "RadialCallout"}]]ChartLayout (4)
ChartLayout 按同心环分组:
data = {{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, {{1, 1}, {2, 2}, {2, 3}}};{SectorChart[data], SectorChart[data, ChartLayout -> "Grouped"]}data = {{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, {{1, 1}, {2, 2}, {2, 3}}};SectorChart[data, ChartLayout -> "Stacked"]SectorChart[RandomReal[1, {10, 5, 2}], ChartLayout -> "Stacked"]SectorChart[{{{1, 6}, {1, 4}, {2, 7}, {1, 6}, {2, 8}}, {{1, 4}, {1, 3}, {2, 10}, {1, 6}, {2, 4}}, {{1, 8}, {1, 3}, {2, 8}, {1, 7}, {2, 6}}}, ImageSize -> Medium, ChartLayout -> "Column"]SectorChart[{{{1, 6}, {1, 4}, {2, 7}, {1, 6}, {2, 8}}, {{1, 6}, {1, 3}, {2, 10}, {1, 6}, {2, 4}}, {{1, 8}, {1, 3}, {2, 8}, {1, 7}, {2, 6}}}, ImageSize -> Medium, ChartLayout -> "Row"]SectorChart[{IconizedObject[«data #1»], IconizedObject[«data #2»], IconizedObject[«data #3»], IconizedObject[«data #4»], IconizedObject[«data #5»], IconizedObject[«data #6»]}, ImageSize -> Medium, ChartLayout -> {"Column", 4}]SectorChart[{IconizedObject[«data #1»], IconizedObject[«data #2»], IconizedObject[«data #3»], IconizedObject[«data #4»], IconizedObject[«data #5»], IconizedObject[«data #6»]}, ImageSize -> Medium, ChartLayout -> {"Column", UpTo[4]}]ChartLegends (4)
SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, ChartLegends -> {"John", "Mary", "Bob", "Peter"}]用 Legended 增加其它图例项:
SectorChart[{{1, 1}, Legended[{1, 2}, "Henry"], {2, 3}, {3, 2}}, ChartLegends -> {"John", "Mary", "Bob", "Peter"}]SectorChart[{{1, 1}, Legended[{1, 2}, "Henry"], {2, 3}, {3, 2}}]data = {{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, {{1, 1}, {2, 2}, {2, 3}}};SectorChart[data, ChartLegends -> {{"Group A", "Group B"}, None}, ChartStyle -> {"Pastel", None}]SectorChart[data, ChartLegends -> {{"Group A", "Group B", "Group C"}, None}, ChartStyle -> {"Pastel", None}]SectorChart[data, ChartLegends -> {{"Test A", "Test B"}, {"John", "Mary", "Bob"}}, ChartStyle -> {{EdgeForm[Red], EdgeForm[Dashed]}, "Pastel"}]用 Placed 控制图例的放置:
data = {{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, {{1, 1}, {2, 2}, {2, 3}}};Table[SectorChart[data, ChartLegends -> Placed[{"John", "Mary", "Bob", "Peter"}, pos]], {pos, {Before, Below}}]ChartStyle (6)
用 ChartStyle 设置扇形的样式:
Table[SectorChart[Tuples[{1, 2}, 2], ChartStyle -> s], {s, {LightBlue, EdgeForm[Dashed], Directive[LightBlue, EdgeForm[Dashed]]}}]SectorChart[Tuples[{1, 2}, 2], ChartStyle -> {Red, Green, Blue, Yellow}]使用 ColorData 的"Gradient"颜色:
SectorChart[Tuples[{1, 2}, 2], ChartStyle -> "Pastel"]用 ColorData 的"Indexed" 颜色:
SectorChart[Tuples[{1, 2}, 2], ChartStyle -> 24]SectorChart[Tuples[{1, 2}, 2], ChartStyle -> {Red, Green}]data = {{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, {{1, 1}, {2, 2}, {2, 3}}};SectorChart[data, ChartStyle -> {Red, Green, Blue}]SectorChart[data, ChartStyle -> {{Red, Green}, None}]SectorChart[data, ChartStyle -> {{EdgeForm[Dotted], EdgeForm[Dashed]}, {Red, Green, Blue}}]SectorChart[data, ChartStyle -> {{Yellow, Magenta}, {Red, Green, Blue}}]Style 屏蔽 ChartStyle 的设置:
SectorChart[{{1, 1}, Style[{1, 3}, Yellow], {3, 2}, {3, 4}}, ChartStyle -> {Red, Green, Blue}]SectorChart[{{1, 1}, Style[{1, 3}, EdgeForm[Dashed]], {3, 2}, {3, 4}}, ChartStyle -> {Red, Green, Blue}]ColorFunction 屏蔽 ChartStyle 的设置:
SectorChart[Tuples[{1, 2}, 2], ChartStyle -> {Red, Green, Blue, Brown}, ColorFunction -> (ColorData["SolarColors"][#2]&)]SectorChart[Tuples[{1, 2}, 2], ChartStyle -> EdgeForm /@ {Dashed, Dotted, DotDashed}, ColorFunction -> (Blend[{LightBlue, LightRed}, #]&)]ColorFunction (4)
SectorChart[Table[{Exp[-t ^ 2], Exp[-t ^ 2]}, {t, -2, 2, 0.25}], ColorFunction -> Function[{angle, radius}, ColorData["Rainbow"][angle]]]用 ColorFunctionScaling->False,获得未调整的角度值:
SectorChart[Tuples[{1, 2}, 2], ColorFunction -> (Switch[{#1, #2}, {1, 1}, Yellow, {1, 2}, Orange, {2, 1}, Red, _, Blue]&), ColorFunctionScaling -> False]SectorChart[{{1, 1}, {1, 2}, {2, 1}, {2, 2}}, ColorFunction -> Function[{angle, radius}, ColorData["Rainbow"][angle radius / 4]], ColorFunctionScaling -> False]ColorFunction 屏蔽 ChartStyle 中的样式:
SectorChart[Tuples[{1, 2, 3}, 2], ChartStyle -> {Red, Green, Brown}, ColorFunction -> "Pastel"]用 ColorFunction 组合不同样式效果:
SectorChart[Table[{Exp[-t ^ 2], Exp[-t ^ 2]}, {t, -2, 2, 0.25}], ColorFunction -> Function[{angle, radius}, Opacity[radius]], ChartStyle -> Purple]ColorFunctionScaling (2)
用 ColorFunctionScaling->False 得到未调整的高度值:
SectorChart[Tuples[{1, 2}, 2], ColorFunction -> (Switch[{#1, #2}, {1, 1}, Yellow, {1, 2}, Orange, {2, 1}, Red, _, Blue]&), ColorFunctionScaling -> False]SectorChart[{{1, 1}, {1, 2}, {2, 1}, {2, 2}}, ColorFunction -> Function[{angle, radius}, ColorData["Rainbow"][angle radius / 4]], ColorFunctionScaling -> False]Frame (4)
默认情况下,SectorChart 不显示边框:
SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}]SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, Frame -> True]SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, Frame -> {{True, True}, {False, False}}]SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, Frame -> {{True, False}, {True, False}}]FrameLabel (4)
SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, Frame -> True, FrameLabel -> {"label"}]SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, Frame -> True, FrameLabel -> {"bottom", "left"}]SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, Frame -> True, FrameLabel -> {{"left", "right"}, {"bottom", "top"}}]SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, Frame -> True, FrameLabel -> {{"left", "right"}, {"bottom", "top"}}, LabelStyle -> Directive[Bold, StandardBrown]]FrameStyle (2)
SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, Frame -> True, FrameStyle -> Directive[StandardBrown, Thick]]SectorChart[{{1, 3}, {2, 1}, {3, 3}, {4, 2}}, Frame -> True, FrameStyle -> {{Directive[Green, Thick], Red}, {Directive[Gray, Thick], Blue}}]ImageSize (7)
使用有名称尺寸 Tiny、Small、Medium 和 Large:
{SectorChart[{{1, 1}, {1, 2}, {1, 3}}, ImageSize -> Tiny], SectorChart[{{1, 1}, {1, 2}, {1, 3}}, ImageSize -> Small]}SectorChart[{{1, 1}, {1, 2}, {1, 3}}, ImageSize -> 150]SectorChart[{{1, 1}, {1, 2}, {1, 3}}, ImageSize -> {Automatic, 150}]SectorChart[{{1, 1}, {1, 2}, {1, 3}}, ImageSize -> UpTo[200]]SectorChart[{{1, 1}, {1, 2}, {1, 3}}, ImageSize -> {200, 250}, Background -> LightBlue]SectorChart[{{1, 1}, {1, 2}, {1, 3}}, ImageSize -> {UpTo[250], UpTo[200]}]chart = SectorChart[{{1, 1}, {1, 2}, {1, 3}}, ImageSize -> Full];{Framed[Pane[chart, {100, 100}]], Framed[Pane[chart, {200, 200}]]}Framed[Pane[SectorChart[{{1, 1}, {1, 2}, {1, 3}}, ImageSize -> {Scaled[0.5], Scaled[0.5]}, Background -> LightBlue], {200, 100}]]LabelingFunction (8)
Tooltip 和 StatusArea 使用自动标签:
SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, LabelingFunction -> Automatic]SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, LabelingFunction -> None]用 Placed 控制标签放置:
Table[SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, LabelingFunction -> (Placed[#, p]&), PlotLabel -> p, Ticks -> None], {p, {"RadialInner", "RadialCenter", "RadialOuter"}}]Table[SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, SectorOrigin -> {Automatic, 4}, LabelingFunction -> (Placed[#, p]&), PlotLabel -> p], {p, {"RadialInside", "RadialOutside", "RadialEdge"}}]Table[SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, LabelingFunction -> (Placed[#, p]&), PlotLabel -> p], {p, {"RadialCallout", "VerticalCallout"}}]Table[SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, LabelingFunction -> (Placed[#, p]&), PlotLabel -> p, SectorOrigin -> {Automatic, 2}], {p, {{0.1, 0.1}, {1 / 2, 1 / 2}, {1, 1}}}]用 Callout 自动放置标签:
SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, LabelingFunction -> (Callout[Row[{"$", NumberForm[#[[2]], {2, 2}]}], Automatic]&)]SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, LabelingFunction -> (Placed[Row[{"$", #[[1]]}, " "], "RadialOutside"]&)]data = {{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, {{1, 1}, {2, 2}, {2, 3}}};SectorChart[data, ChartLabels -> {{"r1", "r2"}, {"c1", "c2", "c3"}}, LabelingFunction -> (Placed[Row[{#3[[1, 1]], #3[[2, 1]], #1}, ","], Tooltip]&)]LabelingSize (3)
SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, ChartLabels -> {"healthfulness", "obstreperous", "spectrogram", "vestige"}]SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, ChartLabels -> {[image], [image], [image], [image], [image], [image], [image]}]SectorChart[{{1, 1}, {1, 2}, {2, 3}, {3, 2}}, ChartLabels -> {"healthfulness", "obstreperous", "spectrogram", "vestige"}, LabelingSize -> 50]PlotInteractivity (4)
SectorChart[{{1, 1}, {2, 1}, {2, 2}}]SectorChart[{{1, 1}, {2, 1}, {2, 2}}, PlotInteractivity -> False]SectorChart[{{1, 1}, {2, 1}, Tooltip[{2, 2}, "Hello"]}, PlotInteractivity -> False]SectorChart[{{1, 1}, {2, 1}, Tooltip[{2, 2}, "Hello"]}, PlotInteractivity -> <|"User" -> True, "System" -> False|>]应用 (7)
g[{{t0_, t1_}, {r0_, r1_}}, ___] := Polygon[{r0 {Cos[t0], Sin[t0]}, r1 {Cos[t0], Sin[t0]}, r1 {Cos[t1], Sin[t1]}, r0 {Cos[t1], Sin[t1]}}]SectorChart[RandomReal[1, {10, 2}], ChartBaseStyle -> Thick, PolarAxes -> Automatic, PolarGridLines -> Automatic, ChartStyle -> EdgeForm[Gray], ChartElementFunction -> g]g[{{t0_, t1_}, {r0_, r1_}}, ___] := Block[{tm = (t0 + t1) / 2}, {Thick, Red, Arrowheads[Large], Arrow[{r0{Cos[tm], Sin[tm]}, r1{Cos[tm], Sin[tm]}}]}]SectorChart[RandomReal[{1, 4}, {10, 2}], ChartBaseStyle -> Thick, PolarAxes -> Automatic, PolarGridLines -> Automatic, PolarTicks -> {"Direction", Automatic}, ChartElementFunction -> g]g[{{t0_, t1_}, {r0_, r1_}}, ___] := Block[{tm = (t0 + t1) / 2}, {Thickness[0.03], Blue, Line[{r0{Cos[tm], Sin[tm]}, r1{Cos[tm], Sin[tm]}}]}]SectorChart[RandomReal[{1, 4}, {10, 2}], ChartBaseStyle -> Thick, PolarAxes -> Automatic, PolarGridLines -> Automatic, PolarTicks -> {"Degrees", Automatic}, ChartStyle -> Opacity[1], ChartElementFunction -> g]countries = {"Sweden", "Portugal", "Bulgaria", "Slovenia", "Austria"};
properties = {"GDPPerCapita", "Population"};data = Table[With[{v = cp}, Button[v[[2 ;; 3]], Speak[StringJoin[ToString /@ {v[[1]], ", GDP per capita: $", Round[v[[2]]], ", Population: ", Round[v[[3]]]}]]]], {cp, Table[Prepend[QuantityMagnitude@Table[CountryData[c, p], {p, properties}], c], {c, countries}]}];SectorChart[data, AxesLabel -> properties, ChartLabels -> Placed[countries, Tooltip]]connect[{{t0_, t1_}, {r0_, r1_}}, r___] := Line[{{lastVertex, lastVertex = r1 {Cos[t1], Sin[t1]}}}]data = {50, 30, 60, 40, 30};labels = {"Vitamin A", "Protein", "Niacin", "Thiamin", "Vitamin C"};options = {SectorOrigin -> 0, ChartLayout -> "Stacked", ChartBaseStyle -> Thick, PolarAxes -> Automatic, ChartStyle -> StandardBlue, ChartElementFunction -> connect, PlotRange -> All, PlotLabel -> "Food M"};Block[{lastVertex = {Last[data], 0}, llen = Length[labels]}, SectorChart[Table[{1, d}, {d, data}], PolarTicks -> {Table[{i 2Pi / llen, labels[[i]]}, {i, 1, llen}], Automatic}, PolarGridLines -> {Table[(i - 1)2Pi / llen, {i, llen}], Automatic}, options]]countries = CountryData["G8"];
gdp = CountryData[#, {"GDP", 2006}]& /@ countries;
gdpPerCapita = CountryData[#, {"GDPPerCapita", 2006}]& /@ countries;
population = CountryData[#, {"Population", 2006}]& /@ countries;
data = Transpose[{population, gdpPerCapita}];
dollarForm[a_] := NumberForm[a, {10, 2}, NumberPadding -> {"", "0"}]对每一个扇形加一个别致的 Tooltip 标签:
labeler = (Placed[#, Tooltip, Style[Column[{Row[{"GDP (Area): ", dollarForm[First@# * Last@#]}], Row[{"Population (Angle): ", First@#}], Row[{"GDP Per Capita (Radius): ", dollarForm[First@#]}]}, Alignment -> {Left, Bottom}, Frame -> True], 14, FontFamily -> "Helvetica"]&]&);SectorChart[data, SectorOrigin -> {Automatic, 10000}, LabelingFunction -> labeler, ChartStyle -> 2, ChartLabels -> Placed[EntityValue[countries, "Name"], "RadialCallout", Style[#, 12, FontFamily -> "Helvetica", Darker@Brown]&], Epilog -> Text[Style["GDP", 12, Bold, Darker[Brown], FontFamily -> "Helvetica"]], PlotLabel -> Style["Visualizing GDP Per Capita", 14, Bold, FontFamily -> "Helvetica", Darker@Brown], PlotRange -> All, ChartLegends -> Placed[Style[dollarForm[#], FontFamily -> "Helvetica"]& /@ gdp, After]]从 0° 到 360° 的 WeatherData 中的风向:
WeatherData["KCMI", "WindDirection"]WeatherData["KCMI", "WindDirection", "Units"]data = WeatherData["KCMI", "WindDirection", {{2007, 11, 1}, {2008, 11, 1}}]["Values"];data = DeleteCases[data, _Missing];用 Sow 定义一个图表元素函数,来存储组距和频数数据:
sowingBar[{{x0_, x1_}, {y0_, y1_}}, __] := (Sow[{x1 - x0, 100 * (y1 - y0)}];Rectangle[{x0, y0}, {x1, y1}]){histogram, newdata} = Reap[Histogram[data, Automatic, "Probability", ChartElementFunction -> sowingBar]];histogramSectorChart[newdata, SectorOrigin -> {Pi / 2, "Clockwise"}, PolarAxes -> True, PolarGridLines -> Automatic, PolarTicks -> {"Direction", Automatic}, ChartBaseStyle -> Directive[Opacity[1], EdgeForm[Thin]]]属性和关系 (4)
SectorChart 是 PieChart 的一般化:
{SectorChart[{{1, 1}, {2, 1}, {3, 1}}], PieChart[{1, 2, 3}]}使用 SectorChart3D 得到一个三维扇形图:
SectorChart3D[{{2, 2, 3}, {2, 1, 2}, {1, 2, 1}}]使用 RectangleChart 把成对数绘制成条状:
RectangleChart[{{1, 1}, {2, 2}, {3, 1}}]使用 ListPlot 和 ListLinePlot 从成对数产生线图:
{ListPlot[Table[{i, i ^ 2}, {i, 10}], Filling -> Axis], ListLinePlot[Table[{i, i ^ 2}, {i, 10}]]}巧妙范例 (3)
SectorChart[RandomReal[10, {10, 2}], PolarAxes -> True, PolarGridLines -> Automatic, PolarTicks -> {Automatic, Table[{i, "A " ~~ ToString[i], {0.1, 0.6}}, {i, 0, 10, 2}]}, TicksStyle -> {Directive[Darker[Green], 12, Bold], Directive[Gray, 12, Bold]}]SectorChart[RandomReal[1, {20, 2}], PolarAxes -> True, PolarGridLines -> Automatic, GridLinesStyle -> Directive[Dashed, Orange], PolarAxesOrigin -> {{Top, Right}, Automatic}]SectorChart[RandomReal[10, {10, 300, 2}], ColorFunction -> "DeepSeaColors", PerformanceGoal -> "Speed", Background -> StandardGray, ChartStyle -> EdgeForm[None]]文本
