Plot

Plot[f,{x,xmin,xmax}]

generates a plot of f as a function of x from xmin to xmax.

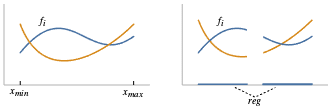

Plot[{f1,f2,},{x,xmin,xmax}]

plots several functions fi.

Plot[{,w[fi],},]

plots fi with features defined by the symbolic wrapper w.

Plot[,{x}reg]

takes the variable x to be in the geometric region reg.

Details and Options

  • Plot is known as a function plot or graph of a function.
  • Plot evaluates f at values of x in the domain being plotted over, and connects the points {x,f[x]} to form a curve showing how f varies with x. It visualizes the set .
  • Gaps are left at any x where the fi evaluate to anything other than real numbers or Quantity.
  • The limits xmin and xmax can be real numbers or Quantity expressions.
  • The region reg can be any RegionQ object in 1D.
  • Plot treats the variable x as local, effectively using Block.
  • Plot has attribute HoldAll and evaluates f only after assigning specific numerical values to x.
  • In some cases, it may be more efficient to use Evaluate to evaluate f symbolically before specific numerical values are assigned to x.
  • The following wrappers w can be used for the fi:
  • Annotation[fi,label]provide an annotation for the fi
    Button[fi,action]evaluate action when the curve for fi is clicked
    Callout[fi,label]label the function with a callout
    Callout[fi,label,pos]place the callout at relative position pos
    EventHandler[fi,events]define a general event handler for fi
    Hyperlink[fi,uri]make the function a hyperlink
    Labeled[fi,label]label the function
    Labeled[fi,label,pos]place the label at relative position pos
    Legended[fi,label]identify the function in a legend
    PopupWindow[fi,cont]attach a popup window to the function
    StatusArea[fi,label]display in the status area on mouseover
    Style[fi,styles]show the function using the specified styles
    Tooltip[fi,label]attach a tooltip to the function
    Tooltip[fi]use functions as tooltips
  • Wrappers w can be applied at multiple levels:
  • w[fi]wrap the fi
    w[{f1,}]wrap a collection of fi
    w1[w2[]]use nested wrappers
  • Callout, Labeled, and Placed can use the following positions pos:
  • Aboveposition above curve
    Belowposition below curve
    Beforeposition before curve
    Afterposition after curve
    Startposition at start of each curve
    Endposition at end of each curve
    xnear the curve at a position x
    Scaled[s]scaled position s along the curve
    {s,Above}above relative position at position s along the curve
    {s,Below}below relative position at position s along the curve
    {pos,epos}epos in label placed at relative position pos of the curve

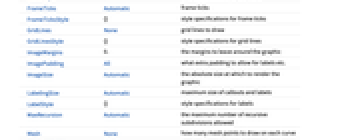

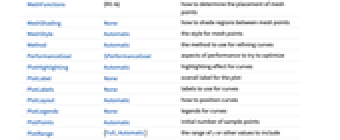

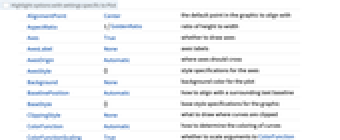

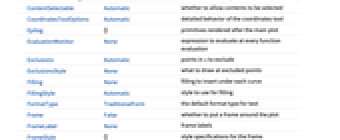

  • Plot has the same options as Graphics, with the following additions and changes:
  • AspectRatio1/GoldenRatioratio of height to width
    AxesTruewhether to draw axes
    ClippingStyleNonewhat to draw where curves are clipped »
    ColorFunctionAutomatichow to determine the coloring of curves
    ColorFunctionScalingTruewhether to scale arguments to ColorFunction
    EvaluationMonitorNoneexpression to evaluate at every function evaluation
    ExclusionsAutomaticpoints in x to exclude
    ExclusionsStyleNonewhat to draw at excluded points
    FillingNonefilling to insert under each curve
    FillingStyleAutomaticstyle to use for filling
    LabelingSizeAutomaticmaximum size of callouts and labels
    MaxRecursionAutomaticthe maximum number of recursive subdivisions allowed
    MeshNonehow many mesh points to draw on each curve
    MeshFunctions{#1&}how to determine the placement of mesh points
    MeshShadingNonehow to shade regions between mesh points
    MeshStyleAutomaticthe style for mesh points
    MethodAutomaticthe method to use for refining curves
    PerformanceGoal$PerformanceGoalaspects of performance to try to optimize
    PlotLabelNoneoverall label for the plot
    PlotLabelsNonelabels to use for curves
    PlotLegendsNonelegends for curves
    PlotPointsAutomaticinitial number of sample points
    PlotRange{Full,Automatic}the range of y or other values to include
    PlotRangeClippingTruewhether to clip at the plot range
    PlotStyleAutomaticgraphics directives to specify the style for each curve
    PlotTheme$PlotThemeoverall theme for the plot
    RegionFunction(True&)how to determine whether a point should be included
    ScalingFunctionsNonehow to scale individual coordinates
    TargetUnitsAutomaticunits to display in the plot
    WorkingPrecisionMachinePrecisionthe precision used in internal computations
  • Possible settings for ClippingStyle are:
  • Automaticuse a dotted line for the clipped portion
    Noneomit the clipped portion of the curve
    styleuse style for the clipped portion

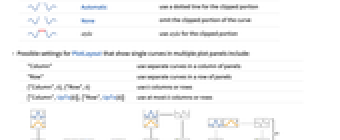

  • Possible settings for PlotLayout that show single curves in multiple plot panels include:
  • "Column"use separate curves in a column of panels
    "Row"use separate curves in a row of panels
    {"Column",k},{"Row",k}use k columns or rows
    {"Column",UpTo[k]},{"Row",UpTo[k]}use at most k columns or rows

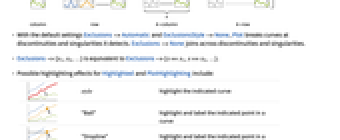

  • With the default settings Exclusions->Automatic and ExclusionsStyle->None, Plot breaks curves at discontinuities and singularities it detects. Exclusions->None joins across discontinuities and singularities.
  • Exclusions->{x1,x2,} is equivalent to Exclusions->{x==x1,x==x2,}.
  • PlotLegends->"Expressions" uses the fi as the legend text.

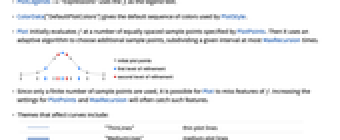

  • Plot initially evaluates f at a number of equally spaced sample points specified by PlotPoints. Then it uses an adaptive algorithm to choose additional sample points, subdividing a given interval at most MaxRecursion times.
  • Since only a finite number of sample points are used, it is possible for Plot to miss features of f. Increasing the settings for PlotPoints and MaxRecursion will often catch such features.
  • Themes that affect curves include:
  • "ThinLines"thin plot lines
    "MediumLines"medium plot lines
    "ThickLines"thick plot lines

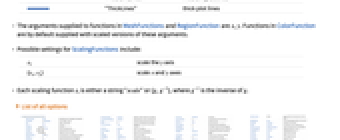

  • The arguments supplied to functions in MeshFunctions and RegionFunction are x, y. Functions in ColorFunction are by default supplied with scaled versions of these arguments.
  • ScalingFunctions->"scale" scales the coordinate; ScalingFunctions{"scalex","scaley"} scales both the and coordinates.

Examples

open allclose all

Basic Examples  (5)

Plot a function:

Plot several functions with a legend:

Label each curve:

Fill below a curve:

Fill between two curves:

Plot multiple filled curves, automatically using transparent colors:

Scope  (30)

Sampling  (10)

More points are sampled when the function changes quickly:

The plot range is selected automatically:

Ranges where the function becomes nonreal are excluded:

The curve is split when there are discontinuities in the function:

Use Exclusions->None to draw a connected curve:

Use PlotPoints and MaxRecursion to control adaptive sampling:

Use PlotRange to focus in on areas of interest:

The domain can be specified by a region:

Specify a domain using a MeshRegion:

Plot over an infinite domain:

Use ScalingFunctions to scale the axes:

Labeling and Legending  (8)

Label curves with Labeled:

Place the labels relative to the curves:

Label curves with PlotLabels:

Place the label near the curve at an value:

Use a scaled position:

Specify the text position relative to the point:

Label curves automatically with Callout:

Place a label with specific locations:

Include legends for each curve:

Use Legended to provide a legend for a specific curve:

Use Placed to change the legend location:

Presentation  (12)

Multiple curves are automatically colored to be distinct:

Provide explicit styling to different curves:

Include a legend:

Add labels for the axes and overall plot:

Add labels for the curves:

Label positions along a curve:

Provide an interactive Tooltip for each curve:

Create filled plots:

Use a plot theme:

Create an overlay mesh:

Style the curve segments between mesh points:

Plot over an infinite domain with automatic ticks:

Show multiple curves in a row of separate panels:

Use a column instead of a row:

Use multiple rows or columns:

Options  (113)

AspectRatio  (1)

Choose the ratio of height to width from the actual plot values:

Axes  (2)

Draw no axes:

Draw the axis but no axis:

AxesLabel  (2)

Use labels based on variables specified in Plot:

Specify a label for each axis:

AxesOrigin  (2)

Determine where the axes cross automatically:

Specify the axes origin at the point :

AxesStyle  (3)

Change the style for the axes:

Specify the style of each axis:

Use different styles for the ticks and the axes:

Use different styles for the labels and the axes:

BaselinePosition  (1)

Align graphs by the axis in each plot:

ClippingStyle  (5)

Omit clipped regions of the plot:

Show the clipped regions like the rest of the curve:

Show clipped regions with red lines:

Show clipped regions as red at the bottom and thick at the top:

Show clipped regions as red and thick:

ColorFunction  (5)

Color by a scaled coordinate and scaled coordinate, respectively:

Color with a named color scheme:

Color a curve red when its absolute coordinate is above 0:

Fill with the color used for the curve:

ColorFunction has higher priority than PlotStyle for coloring the curve:

ColorFunctionScaling  (3)

No argument scaling on the left; automatic scaling on the right:

Color a curve red when its absolute coordinate is above 0:

Use hue to indicate direction and brightness to indicate amplitude:

Epilog  (2)

This inserts the graphics object in the resulting graphic:

Insert special markers to indicate whether a point belongs to the curve or not:

EvaluationMonitor  (3)

Find the list of values sampled by Plot:

Show where Plot evaluates Sin[x]:

Count how many times the function is evaluated:

Exclusions  (7)

Use automatic methods for computing exclusions, in this case for a piecewise function:

In this case, the exclusion comes from a branch cut discontinuity:

Indicate that no exclusions should be computed:

Exclude a fixed set of points:

Give a set of exclusions as an equation:

This gives two sets of exclusions:

Exclude an equation and the automatically chosen points:

ExclusionsStyle  (2)

Use dashed lines to indicate the vertical asymptotes:

Use black points to highlight the exclusions:

Filling  (7)

Use symbolic or explicit values:

By default, overlapping fills combine using opacity:

Fill between curve 1 and the axis:

Fill between curves 1 and 2:

Fill between curves 1 and 2 with a specific style:

Fill between curves 1 and with yellow:

Fill between curves 1 and 2; use yellow when 1 is below 2 and green when 1 is above 2:

FillingStyle  (4)

Use different fill colors:

Fill with opacity 0.5 orange:

Fill with red below the axis and blue above:

Use a variable filling style obtained from a ColorFunction:

LabelingSize  (3)

Textual labels are shown at their actual sizes:

Image labels are automatically resized:

Specify a maximum size for textual labels:

Specify a maximum size for image labels:

MaxRecursion  (2)

The default sampling mesh:

Each level of MaxRecursion will subdivide the initial mesh into a finer mesh:

Mesh  (3)

Show the initial and final sampling meshes:

Use 20 mesh levels evenly spaced in the direction:

Use an explicit list of values for the mesh in the direction:

MeshFunctions  (2)

Use a mesh evenly spaced in the and directions:

Show 5 mesh levels in the direction (red) and 10 in the direction (blue):

MeshShading  (6)

Alternate red and blue segments of equal width in the direction:

Use None to remove segments:

MeshShading can be used with PlotStyle:

MeshShading has higher priority than PlotStyle for styling the curve:

Use PlotStyle for some segments by setting MeshShading to Automatic:

MeshShading can be used with ColorFunction:

MeshStyle  (4)

Color the mesh the same color as the plot:

Use a red mesh in the direction:

Use a red mesh in the direction and a blue mesh in the direction:

Use big, red mesh points in the direction:

PerformanceGoal  (2)

Generate a higher-quality plot:

Emphasize performance, possibly at the cost of quality:

PlotLabel  (1)

Add an overall label to the plot:

PlotLabels  (5)

Specify text to label curves:

Place the labels above the curves:

Place the labels differently for each curve:

PlotLabels->"Expressions" uses functions as curve labels:

Use callouts to identify the curves:

Use None to not add a label:

PlotLayout  (2)

Place each curve in a separate panel using shared axes:

Use a row instead of a column:

Use multiple columns or rows:

Prefer full columns or rows:

PlotLegends  (7)

No legends are used by default:

Create a legend based on the functions:

Create a legend with placeholder text:

Create a legend with specific labels:

PlotLegends picks up PlotStyle values automatically:

Use Placed to position legends:

Place legends inside:

Use LineLegend to modify the appearance of the legend:

PlotPoints  (1)

Use more initial points to get a smoother curve:

PlotRange  (3)

Show the curve over the whole domain:

Show the curve only where it is real valued:

Show the curve from to over the whole domain:

PlotRangeClipping  (2)

Constrain the curve to the framed region:

Draw the curve using the whole graphical region:

PlotStyle  (6)

Use different style directives:

By default, different styles are chosen for multiple curves:

Explicitly specify the style for different curves:

PlotStyle can be combined with ColorFunction:

PlotStyle can be combined with MeshShading:

MeshStyle by default uses the same style as PlotStyle:

PlotTheme  (2)

Use a theme with simple ticks and grid lines in a bright color scheme:

Change the color scheme:

RegionFunction  (2)

Show the curve where :

Exclude the region where :

ScalingFunctions  (9)

By default, plots have linear scales in each direction:

Use a log scale in the direction:

Use a linear scale in the direction that shows smaller numbers at the top:

Use a reciprocal scale in the direction:

Use different scales in the and directions:

Reverse the axis without changing the axis:

Use a scale defined by a function and its inverse:

Positions in Ticks and GridLines are automatically scaled:

PlotRange and AxesOrigin are automatically scaled:

WorkingPrecision  (2)

Evaluate functions using machine-precision arithmetic:

Evaluate functions using arbitrary-precision arithmetic:

Applications  (19)

Basic Applications  (3)

Compare several functions:

A function and its inverse are reflections in :

Illustrate that -Abs[x]x Sin[1/x]Abs[x] in the interval:

Highlighting Discrete Function Features  (8)

Curves are broken where a function has singularities:

Emphasize the singularities by specifying ExclusionsStyle:

Highlight the discontinuities in a function using ExclusionsStyle:

The discontinuities are automatically derived but can also be specified:

Highlight zeros of a function :

The second argument passed to MeshFunctions is :

Highlight local extrema for a function using MeshFunctions:

Local extrema are given by :

Highlight the local maximums and minimums of a function :

The local maximums are the points where and :

Similarly the local minimums are given by and :

Highlight the non-negative and non-positive parts of a function :

Using the Filling specification allows this to be readily achieved:

Highlight the segments where the function is increasing or decreasing:

A function is increasing when :

A function is decreasing when :

Show them together and add a legend:

Highlight the parts where a function is convex or concave:

A function is convex when :

A function is concave when :

Show them together with a legend:

Highlighting Continuous Function Features  (1)

Use color to overlay the derivative of function on top of the curve for :

By rescaling the derivative to be between 0 and 1, you can easily map to a color:

From ColorData you can get a variety of color scales:

The derivative can now be overlaid as color on top of the curve using ColorFunction:

Using Filling emphasizes the color more:

Epigraph and Hypograph of a Function  (2)

The epigraph of a function is given by . You can visualize the epigraph by using Filling:

The hypograph of a function is given by . You can visualize the hypograph by using Filling:

Complex-Valued Functions  (3)

Plot the real and imaginary parts of a complex-valued function of a real variable:

Plot the magnitude and phase of a complex-valued function of a real variable:

Plot the magnitude and color based on the phase of the function:

Add filling and a color legend that provides a separate axis for the phase:

Equation Solutions  (2)

The general solution to a differential equation:

Plot two particular solutions:

Plot a family of solutions:

The general solution to an algebraic equation:

Plot a family of solutions:

Properties & Relations  (9)

Plot samples more points where it needs to:

Plot is a special case of ParametricPlot for curves:

Use ParametricPlot for parametric curves and regions:

Use ContourPlot and RegionPlot for implicit curves and regions:

Use LogPlot, LogLinearPlot, and LogLogPlot for logarithmic plots:

Use ListPlot and ListLinePlot for data:

AbsArgPlot is a special case of Plot:

ReImPlot is a special case of Plot:

Use Plot3D and ParametricPlot3D for function and parametric surfaces:

Neat Examples  (1)

Eigenfunctions in a potential well:

Wolfram Research (1988), Plot, Wolfram Language function, https://reference.wolfram.com/language/ref/Plot.html (updated 13).

Text

Wolfram Research (1988), Plot, Wolfram Language function, https://reference.wolfram.com/language/ref/Plot.html (updated 13).

CMS

Wolfram Language. 1988. "Plot." Wolfram Language & System Documentation Center. Wolfram Research. Last Modified 13. https://reference.wolfram.com/language/ref/Plot.html.

APA

Wolfram Language. (1988). Plot. Wolfram Language & System Documentation Center. Retrieved from https://reference.wolfram.com/language/ref/Plot.html

BibTeX

@misc{reference.wolfram_2021_plot, author="Wolfram Research", title="{Plot}", year="13", howpublished="\url{https://reference.wolfram.com/language/ref/Plot.html}", note=[Accessed: 08-December-2021 ]}

BibLaTeX

@online{reference.wolfram_2021_plot, organization={Wolfram Research}, title={Plot}, year={13}, url={https://reference.wolfram.com/language/ref/Plot.html}, note=[Accessed: 08-December-2021 ]}
